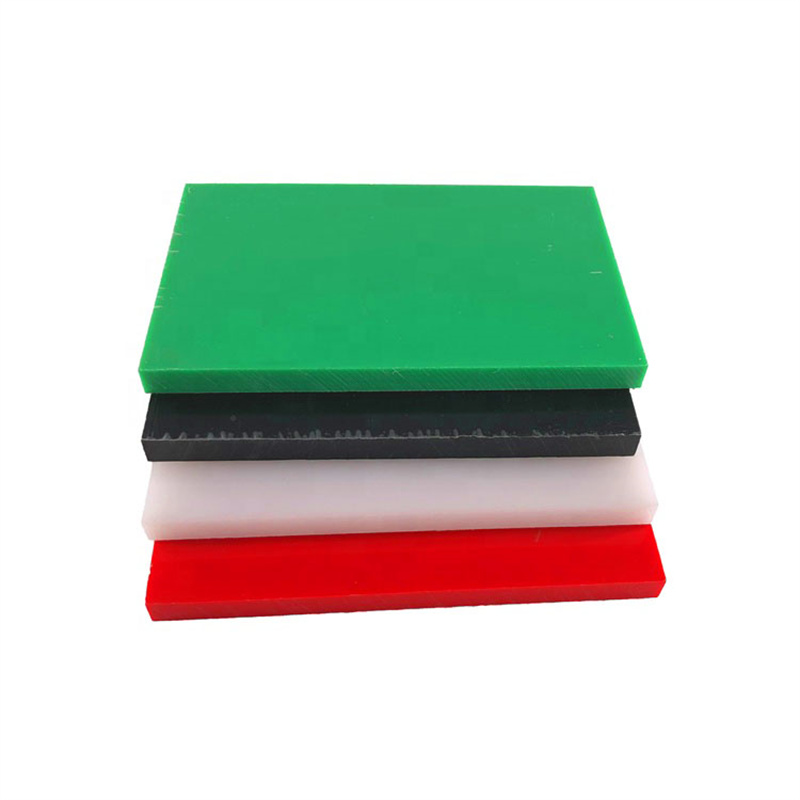

UHWMPE PE1000 Engineering Plastic Sheet
Product Detail:
Polyethylene - Ultra-High Molecular Weight
PE1000 has high abrasion resistance, excellent sliding properties and high toughness. It has good chemical resistance, high impact strength and low moisture absorption. PE1000 is also food compliant for all critical processing applications.
|
Processing Method |
Length(mm) |
Width(mm) |
Thickness(mm) |
|
Mould Sheet Size |
1000 |
1000 |
10-150 |
|
|
1240 |
4040 |
10-150 |
|
|
2000 |
1000 |
10-150 |
|
|
2020 |
3030 |
10-150 |
|
Extrusion Sheet Size |
Width: thickness ＞20mm，max can be 2000mm；thickness≤20mm，max can be 2800mmLength: unlimitedThickness: 0.5 mm to 60 mm |
||
|
Sheet Color |
Natural; black; white; blue; green and so on |
||
Product Feature:
1.Abrasive resistance which always have in thermoelectricity polymer.
2.Best shock resistance even in low temperature.
3.Low frictional factor, and well sliding bearing material.
4.Lubricity( no caking, in adhesion) .
5.Best chemical corrosion resistance and stress craze resistance.
6.Excellent machinery process ability .
7.Lowest water absorption(<0.01%) .
8.Paragon electric insulativity and antistatic behavior .
9. Nice high energy radioactive resistance.
10.Density is lower than other thermoplastics (< 1g/m3).
11.Long using temperature range: -269°C--85°C.
Product Testing：
High abrasion resistance
| Materials | UHMWPE | PTFE | Nylon 6 | Steel A | Polyvinyl fluoride | Purple steel |
| Wear Rate | 0.32 | 1.72 | 3.30 | 7.36 | 9.63 | 13.12 |
Good self-lubricating properties,low friction
| Materials | UHMWPE -coal | Cast stone-coal | Embroidered
plate-coal |
Not embroidered plate-coal | Concrete coal |
| Wear Rate | 0.15-0.25 | 0.30-0.45 | 0.45-0.58 | 0.30-0.40 | 0.60-0.70 |
High impact strength, good toughness
| Materials | UHMWPE | Cast stone | PAE6 | POM | F4 | A3 | 45# |
| Impact
strength |
100-160 | 1.6-15 | 6-11 | 8.13 | 16 | 300-400 | 700
|
Product Performance：
| Test Item | Test Method | Result |
| Static Coefficient of Friction(ps) | ASTM D1894-14 | 0.148 |
| Kinetic Coefficient of Friction(px) | ASTM D1894-14 | 0.105 |
| Flexural Modulus | ASTM D790-17 | 747MPa |
| Izod Notched Impact Strength | ASTM D256-10C1 Method A | 840J/m P(partial break) |
| Shore Hardness | ASTM D2240-15E1 | D/64/1 |
| Tensile Modulus | ASTM D638-14 | 551 MPa |
| Tensile Strength | ASTM D638-14 | 29.4MPa |
| Elongation at Break | ASTM D638-14 | 3.4 |
Product Packing:

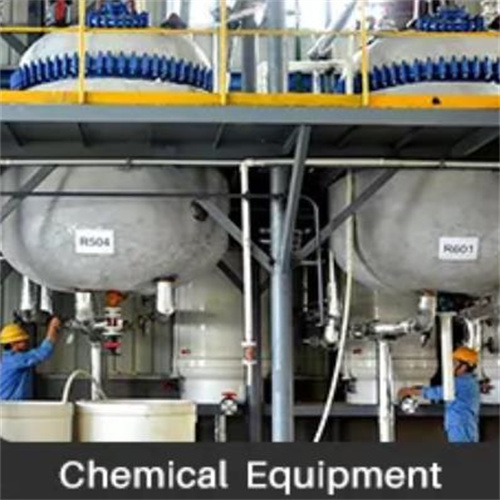

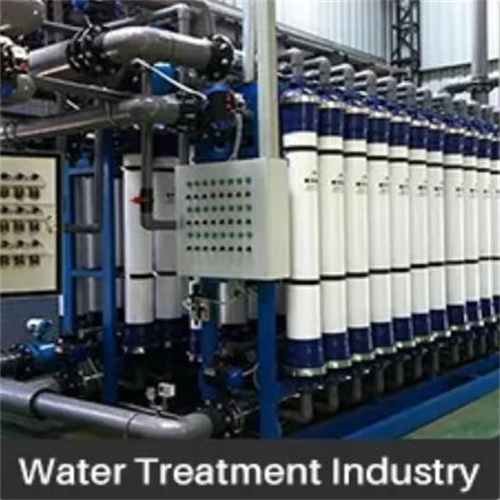

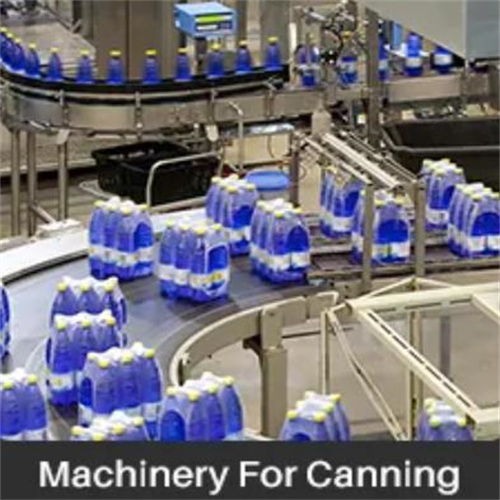

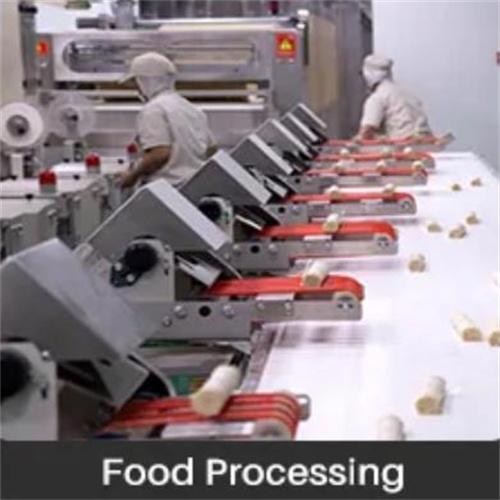

Product Application:
