15mm 20mm 200mm POM white sheet delrin POM sheet machining
Product Detail:
Polyoxymethylene (POM) is a high-performance, semi-crystalline engineering thermoplastic renowned for its metal-like mechanical properties and ability to perform continuously in temperatures up to 100°C. It is widely used to manufacture precision components like gears, bearings, and pump housings in industries ranging from automotive and electronics to medical devices and food machinery. The two main types, POM-C (copolymer) and POM-H (homopolymer), are both available from our company, with POM-C being the most prevalent in the market due to its excellent processability.
Product Specification ：
|
Colored POM Board Specification Data Sheet |
|||||
|
|
Description | Item No. | Thickness (mm) | Width&Length (mm) | Density (g/cm3) |
| Colored POM Board | ZPOM-T-C | 10~100 | 600x1200/1000x2000 | 1.41 | |
| Tolerance (mm) | Weight (kg/pc) | Color | Material | Additive | |
| +0.2~+2.0 | / | Any Color | LOYOCON MC90 | / | |
| Volume Abrasion | Friction Factor | Tensile Strength | Elongation at Break | Bending Strength | |
| 0.0012 cm3 | 0.43 | 64 MPa | 23% | 94 MPa | |
| Flexural Modulus | Charpy Impact Strength | Heat Distortion Temperature | Rockwell Hardness | Water Absorption | |
| 2529 MPa | 9.9 kJ/m2 | 118 °c | M78 |
0.22% |
|
Product Size:
| Item name | Thickness (mm) |
Size (mm) |
Tolerance for Thickneess (mm) |
E.S.T N.W (KGS) |
| delrin pom plate | 1 | 1000x2000 | (+0.10) 1.00-1.10 | 3.06 |
| 2 | 1000x2000 | (+0.10) 2.00-2.10 | 6.12 | |
| 3 | 1000x2000 | (+0.10) 3.00-3.10 | 9.18 | |
| 4 | 1000x2000 | (+0.20)4.00-4.20 | 12.24 | |
| 5 | 1000x2000 | (+0.25)5.00-5.25 | 15.3 | |
| 6 | 1000x2000 | (+0.30)6.00-6.30 | 18.36 | |
| 8 | 1000x2000 | (+0.30)8.00-8.30 | 26.29 | |
| 10 | 1000x2000 | (+0.50)10.00-10.5 | 30.50 | |
| 12 | 1000x2000 | (+1.20)12.00-13.20 | 38.64 | |
| 15 | 1000x2000 | (+1.20)15.00-16.20 | 46.46 | |
| 20 | 1000x2000 | (+1.50)20.00-21.50 | 59.76 | |
| 25 | 1000x2000 | (+1.50)25.00-26.50 | 72.50 | |
| 30 | 1000x2000 | (+1.60)30.00-31.60 | 89.50 | |
| 35 | 1000x2000 | (+1.80)35.00-36.80 | 105.00 | |
| 40 | 1000x2000 | (+2.00)40.00-42.00 | 118.83 | |
| 45 | 1000x2000 | (+2.00)45.00-47.00 | 135.00 | |
| 50 | 1000x2000 | (+2.00)50.00-52.00 | 149.13 | |
| 60 | 1000x2000 | (+2.50)60.00-62.50 | 207.00 | |
| 70 | 1000x2000 | (+2.50)70.00-72.50 | 232.30 | |
| 80 | 1000x2000 | (+2.50)80.00-82.50 | 232.30 | |
| 90 | 1000x2000 | (+3.00)90.00-93.00 | 268.00 | |
| 100 | 1000x2000 | (+3.50)100.00-103.5 | 299.00 | |
| 110 | 610x1220 | (+4.00)110.00-114.00 | 126.8861 | |
| 120 | 610x1220 | (+4.00)120.00-124.00 | 138.4212 | |
| 130 | 610x1220 | (+4.00)130.00-134.00 | 149.9563 | |
| 140 | 610x1220 | (+4.00)140.00-144.00 | 161.4914 | |
| 150 | 610x1220 | (+4.00)150.00-154.00 | 173.0265 | |
| 160 | 610x1220 | (+4.00)160.00-164.00 | 184.5616 | |
| 180 | 610x1220 | (+4.00)180.00-184.00 | 207.6318 | |
| 200 | 610x1220 | (+4.00)200.00-205.00 | 230.702 |
Product Proccess:
Product Feature:
• Mechanical Performance: High strength, stiffness and hardness comparable to metals
• Dimensional Stability: Low water absorption (<0.25%) maintains tight tolerances
• Chemical/Medical Resistance: Good solvent resistance; medical-grade options available
• Durability: Excellent creep and fatigue resistance for long-term reliability
• Wear Performance: Outstanding abrasion resistance with low friction coefficient
Product Testing：
Tianjin Beyond Technology Developing Co., Ltd is a comprehensive enterprise which focus on production, development and sale of engineering plastics, rubber and multiply non-metallic products since 2015
We have established a good reputation and built long-term& stable cooperation relationship with many domestic companies and gradually step out to cooperate with abroad companies in southeast Asia, the Middle East, North America, South America, Europe and other regions.
Our main products: UHMWPE, MC nylon, PA6, POM, HDPE, PP,PU, PC, PVC, ABS, ACRYLIC、PTFE, PEEK, PPS,PVDF material sheets &rods

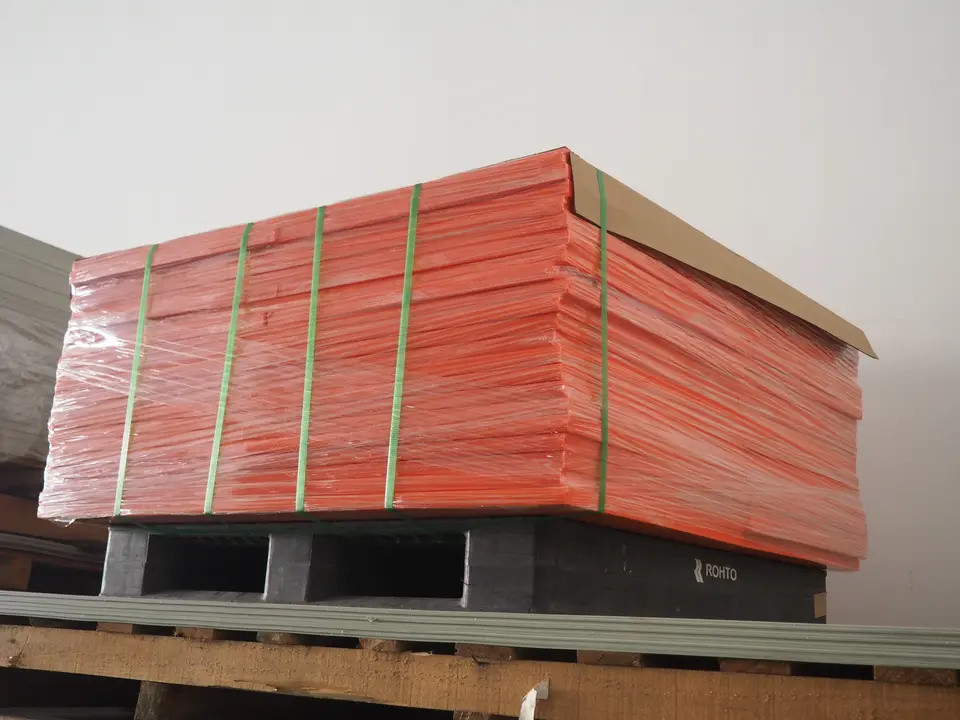

Product Packing:
Product Application:
