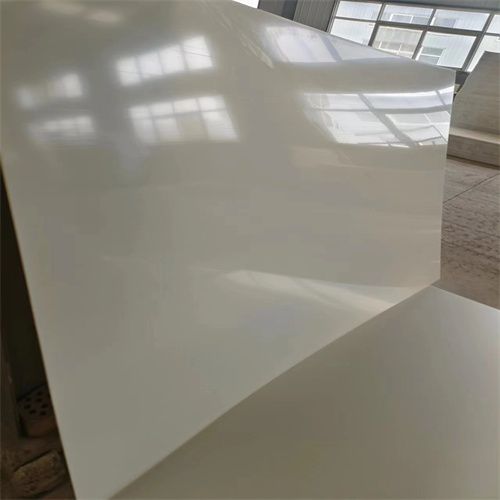

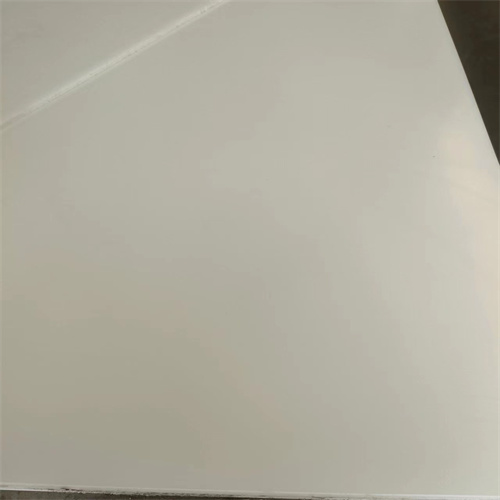

High Impact Smooth ABS Block Plastic Sheets
Product Detail:
Abs Board is one of the most cost-effective engineering plastics. It has the perfect combination of toughness and rigidity. Acrylonitrile has good chemical resistance and surface hardness. Butadiene has good toughness and impact resistance. Styrene has good rigidity and fluidity and is easy to print.
| Size | 1250*2000mm; 1250*1000mm;1300*2000mm |
| Thickness | 1---150mm |
| Density | 1.06 g/cm³ |
| Color | White, yellow, black |
| Brand name | BEYOND |
| Material | 100% virgin material |
| Sample | FREE |
| Acid resistance | YES |
| Ketone Resistance | YES |
Product Feature:
Strong and rigid
· Tough
· Easily machined
· Easily bonded and welded
· Resistant to most alkalis and weak acids
· High heat distortion temperature
· Excellent electrical insulator
· Excellent formability
· Relatively low water absorption
Product Performance：
| Item | 4x8 ABS Sheet |
| Color | White, yellow, black |
| Proportion | >1.06g/cm³ |
| Heat resistance (continuous) | 70℃ |
| Heat resistance (short-term) | 85℃ |
| Melting point | 170℃ |
| Glass transition temperature | _ |
| Linear thermal expansion coefficient (average 23~100℃) | 100×10-6/(m.k) |
| Flammability(UI94) | HB |
| Tensile modulus of elasticity | 2100MPa |
| Compressive stress of normal strain-1%/2% | 17/-MPa |
| Friction coefficient | 0.3 |
| Rockwell hardness | 70 |
| Dielectric strength | >20 |
| Volume resistance | ≥10 14Ω×cm |
| Surface resistance | ≥10 13Ω |
| Relative dielectric constant-100HZ/1MHz | 3.3/- |
| Bonding capacity | + |
| Food contact | - |
| Acid resistance | + |
| Alkali resistance | 0 |
| Carbonated water resistance | + |
| Aromatic compound resistance | - |
| Ketone resistance | - |
Product Packing:
Product Application:
· Food industry, buiding model, hand paddle making
· Electronic industry part, electronic & electronic field, pharmaceuticals industry
· Beverage supply line, compressed air pipe,,chemical industry pipe.
