Grey PP extrusion sheet
Product Detail:
| Item | PP Sheet | |
| Material | PP | |
| Surface | Glossy, embossed or customized | |
| Thickness | 2mm~30mm | |
| Width | 1000mm~1500mm ( 2mm~20mm) | |
| 1000mm~1300mm ( 25mm~30mm) | ||
| Length | Any length | |
| Color | Natural, grey , black, light blue, yellow or customized | |
| Standard Size | 1220X2440mm;1500X3000mm:1300X2000mm;1000X2000mm | |
| Density | 0.91g/cm3-0.93g/cm3 | |
| Certificate | SGS,ROHS,REACH | |
| Size | Standard size | ||||
| Thickness | 1220mm×2440mm | 1500mm×3000mm | 1300mm×2000mm | 1000mm×2000mm | |
| 0.5mm-2mm | √ | √ | √ | √ | |
| 3mm-25mm | √ | √ | √ | √ | |
| 30mm | √ | √ | √ | √ | |
| We can also provide any other sizes according to your special needs. | |||||
Product Feature:
Acid resistant
Abrasion resistant
Chemical resistant
Alkalis and solvent resistant
Resistant to temps up to 190F degrees
Impact resistant
Moisture resistant
Stress crack resistant
Excellent dielectric properties
Able to retain stiffness and flexibility
Homopolymer is more rigid and has a higher strength to weight ratio than copolymer.
Greater Hardness and Stiffness vs. HDPE
Product Testing：
Our company has an independent product laboratory, which can complete the factory inspection from raw materials to finished products, and ensure that the product quality is qualified before leaving the factory
Product Performance：
| Item |
pp polypropylene sheet |
| Heat resistance (continuous): |
95℃ |
| Heat resistance (short-term): |
120 |
| Melting point: |
170℃ |
| Glass transition temperature: |
_ |
| Linear thermal expansion coefficient (average 23~100℃): |
150×10-6/(m.k) |
| Flammability(UI94): |
HB |
| (Dipping into water at 23℃: |
0.01 |
| Breaking tensile strain: |
>50 |
| Tensile modulus of elasticity: |
1450MPa |
| Compressive stress of normal strain-1%/2%: |
4/-MPa |
| Friction coefficient: |
0.3 |
| Rockwell hardness: |
70 |
| Dielectric strength: |
>40 |
| Volume resistance: |
≥10 16Ω×cm |
| Surface resistance: |
≥10 16Ω |
| Relative dielectric constant-100HZ/1MHz: |
2.3/- |
| Bonding capacity: |
0 |
| Food contact: |
+ |
| Acid resistance: |
+ |
| Alkali resistance |
+ |
| Carbonated water resistance: |
+ |
| Aromatic compound resistance: |
- |
| Ketone resistance: |
+ |

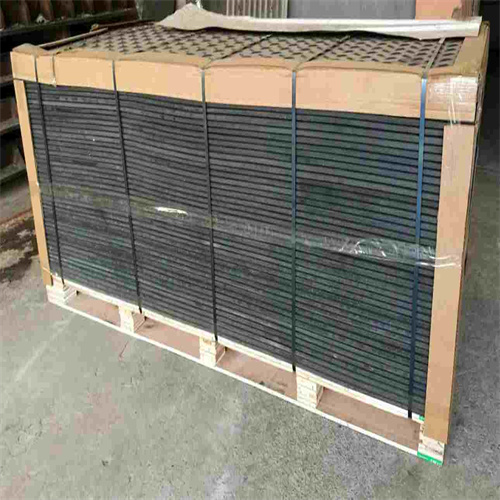

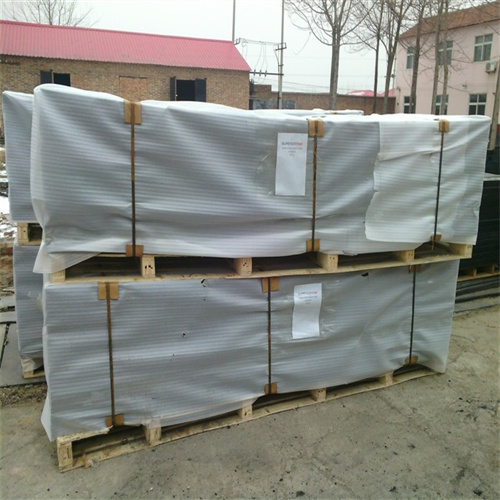

Product Packing:
Product Application:
Sewage line, seals spraying carrier, anti-corrosive tank/bucket, acid/alkali resistant industry, waste/exhaust emission equipment, washer, dust free room, semiconductor factory and other related industry equipment and machinery, food machine and cutting plank and electroplating process.
