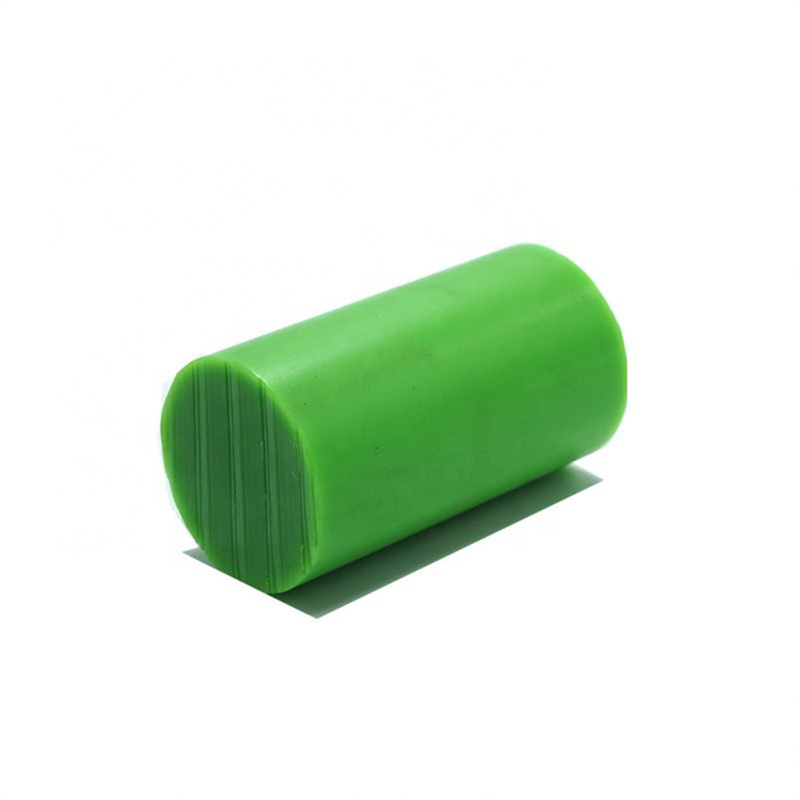

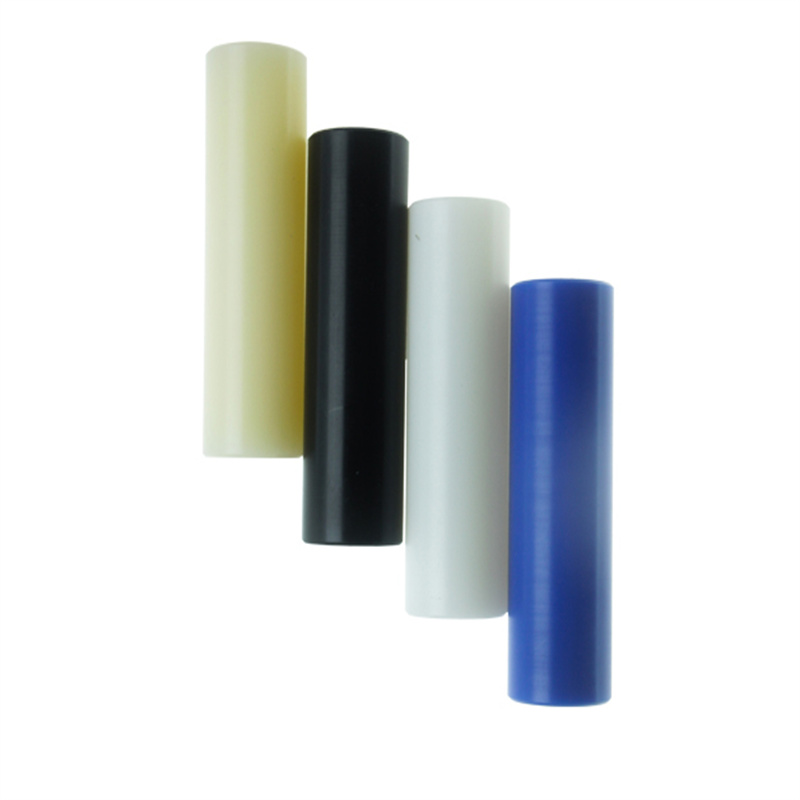

Colored solid nylon rod PA6 high wear resistant nylon bar Plastic Nylon Round Rod
Product Detail:
MC nylon (monomer-cast nylon), a key player in the engineering plastics field, exhibits significant performance advantages due to its unique casting polymerization process. This material is produced by directly polymerizing caprolactam monomers within a mold, a process that allows it to achieve a molecular weight of 70,000-100,000, far exceeding that of ordinary nylon materials. This high molecular weight structure endows the material with superior mechanical strength, wear resistance, and dimensional stability, enabling it to withstand various harsh industrial environments.
In practical applications, MC nylon demonstrates broad applicability. From wear-resistant components in heavy machinery to critical components in conveyor systems, from corrosion-resistant parts in chemical equipment to structural components in mining machinery, MC nylon provides reliable performance. Its wide temperature range, low coefficient of friction, and good self-lubricating properties give it a clear advantage in reducing equipment maintenance and extending service life. Especially in scenarios requiring the replacement of metal parts, MC nylon not only reduces equipment weight but also lowers noise and energy consumption.
Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on.
Sheet Size：1000X2000X(Thickness:1-300mm）1220X2440X(Thickness:1-300mm)
Product Performance :
|
Property
|
Item No.
|
Unit
|
MC Nylon (Natural)
|
Oil Nylon+Carbon(Black)
|
Oil Nylon (Green)
|
MC901 (Blue)
|
MC Nylon+MSO2 (Light black)
|
|
1
|
Density
|
g/cm3
|
1.15
|
1.15
|
1.135
|
1.15
|
1.16
|
|
2
|
Water absorption (23℃ in air)
|
％ |
1.8-2.0
|
1.8-2.0
|
2
|
2.3
|
2.4
|
|
3
|
Tensile strength
|
MPa
|
89
|
75.3
|
70
|
81
|
78
|
|
4
|
Tensile strain at break
|
％ |
29
|
22.7
|
25 |
35
|
25
|
|
5
|
Compressive stress(at 2%nominal strain)
|
MPa |
51
|
51
|
43
|
47
|
49
|
|
6
|
Charpy impact strength (unnotched)
|
KJ/m2 |
No break
|
NO break |
≥50
|
No BK
|
No break
|
|
7
|
Charpy impact strength (notched)
|
KJ/m2 |
≥5.7
|
≥6.4
|
4
|
3.5
|
3.5
|
|
8
|
Tensile modulus of elasticity
|
MPa |
3190
|
3130
|
3000
|
3200
|
3300
|
|
9
|
Ball indentation hardness
|
N2 |
164
|
150 |
145
|
160
|
160
|
|
10
|
Rockwell hardness
|
-
|
M88
|
M87
|
M82
|
M85
|
M84
|
Product Type：
MC Nylon added MSO2 can remain the impact-resistance and fatigue-resistance of casting nylon, as well as it can improve the loading capacity and wear-resistance. It has a wide application in making gear, bearing, planet gear, seal circle and so on.
Oil Nylon added carbon, has the very compact and crystal structure, which is better than the general casting nylon in the performance of high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.
Product Application:
Product Certification :
Companies strictly enforce the ISO9001-2015 international quality certification system,the product quality conforms to the eu RoHS standard.
Our Factory:
Specializing in the production of "engineering plastic accessories" of high-tech enterprises, the company has a set of imported production equipment and CNC processing equipment, processing means advanced, strong technical force.
Our Factory:
Q1. We don't have drawings, can you produce based on the samples we provide?
A1. We can perform 3D scanning based on customer samples, or we can create drawings.
Q2. How to customize plastic parts?
A2. Customized based on drawings.
Q3. Can I make a sample for testing first?
A3. We can provide samples.
Q4. How long is the sampling period?
A4. Approximately 7 days.
Q5. What processing equipment do you have?
A5. CNC machining centers, CNC lathes, milling machines, engraving machines, injection molding machines, extruders, molding machines.
Q6. What are your accessory processing techniques?
A6. Different processing techniques are used depending on the product, such as machining, extrusion, injection molding, etc.
Q7. Can injection molded products undergo surface treatment? What surface treatment methods are available?
A7. Yes. Surface treatment methods include: painting, screen printing, electroplating, etc.
