Description:
Ultra-high-molecular-weight polyethylene (UHMWPE, PE1000) is a subset of the thermoplastic polyethylene. it has extremely long chains, with a molecular mass usually between 3 and 9 million amu. The longer chain serves to transfer load more effectively to the polymer backbone by strengthening inter molecular interactions. This results in a very tough material, with the highest impact strength of any thermoplastic presently made.
Characteristics:
| Incredible high abrasion resistance and wear resistance; |
| Excellent impact resistance at low temperature; |
| Good self-lubricating performance, non-adherent surface; |
| Unbreakable, good resilience, Super resistance of aging |
| Odorless, tasteless, and nontoxic; |
| Extremely low moisture absorption; |
| Very low coefficient of friction; |
| Highly resistant to corrosive chemicals except oxidizing acids. |
Technical Parameter:
|
Item |
Test Method |
Reference Range |
Unit |
|
Molecular Weight |
Viscosime tirc |
3-9 million |
g/mol |
|
Density |
ISO 1183-1: 2012 /DIN 53479 |
0.92-0.98 |
g/cm³ |
|
Tensile Strength |
ISO 527-2:2012 |
≥20 |
Mpa |
|
Compression Strength |
ISO 604: 2002 |
≥30 |
Mpa |
|
Elongation at break |
ISO 527-2:2012 |
≥280 |
% |
|
Hardness Shore -D |
ISO 868-2003 |
60-65 |
D |
|
Dynamic friction coefficient |
ASTM D 1894/GB10006-88 |
≤0.20 |
/ |
|
Notched Impact Strength |
ISO 179-1:2010/ GB/T1043.1-2008 |
≥100 |
kJ/㎡ |
|
Vicat softing point |
ISO 306-2004 |
≥80 |
℃ |
|
Water Absorption |
ASTM D-570 |
≤0.01 |
% |
Regular size:
|
Processing Method |
Length(mm) |
Width(mm) |
Thickness(mm) |
|
Mould Sheet Size
|
1000 |
1000 |
10-150 |
|
1240 |
4040 |
10-150 |
|
|
2000 |
1000 |
10-150 |
|
|
2020 |
3030 |
10-150 |
|
|
Extrusion Sheet Size
|
Width: thickness ＞20mm，max can be 2000mm；thickness≤20mm，max can be 2800mmLength: unlimitedThickness: 0.5 mm to 60 mm | ||
|
Sheet Color |
Natural; black; white; blue; green and so on | ||

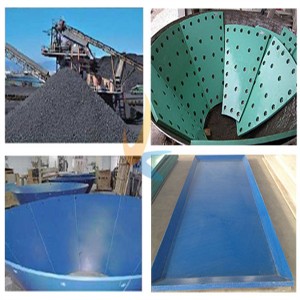

Application:
|
Transport machinery |
Guide rail, conveyor belt, conveyor slide block seat, fixed plate, assembly line timing star wheel. |
|
Food Machinery |
Star wheel, bottle feeding counting screw, filling machine bearing, bottle grabbing machine parts, gasket guide pin, cylinder, gear, roller, sprocket handle. |
|
Paper Machinery |
Suction box cover, deflector wheel, scraper, bearing, blade nozzle, filter, oil reservoir, anti-wear strip, felt sweeper. |
|
Textile machinery |
Slitting machine, shock absorber baffle, connector, crankshaft connecting rod, shuttle rod, sweeping needle, offset rod bearing, swing back beam. |
|
Construction machinery |
Bulldozer pushes up the sheet material, dump truck compartment material, tractor pear knife lining, outrigger pad, ground protection mat |
|
Chemical machinery |
Valve body, pump body, gasket, filter, gear, nut, sealing ring, nozzle, cock, sleeve, bellows. |
|
Ship Port Machinery |
Ship parts, side rollers for bridge cranes, wear blocks and other spare parts, marine fender pad. |
|
General machinery |
Various gears, bearing bushes, bushes, sliding plates, clutches, guides, brakes, hinges, elastic couplings, rollers, supporting wheels, fasteners, sliding parts of lifting platforms. |
|
Stationery Equipment |
Snow lining, powered sled, ice rink pavement, ice rink protection frame. |
|
Medical Equipment |
Rectangular parts, artificial joints, prostheses, etc. |
|
Anywhere according to customer needs |
|
We can provide various UHMWPE sheet according to different requirement in different application.
We look forward to your visit.
