Description:

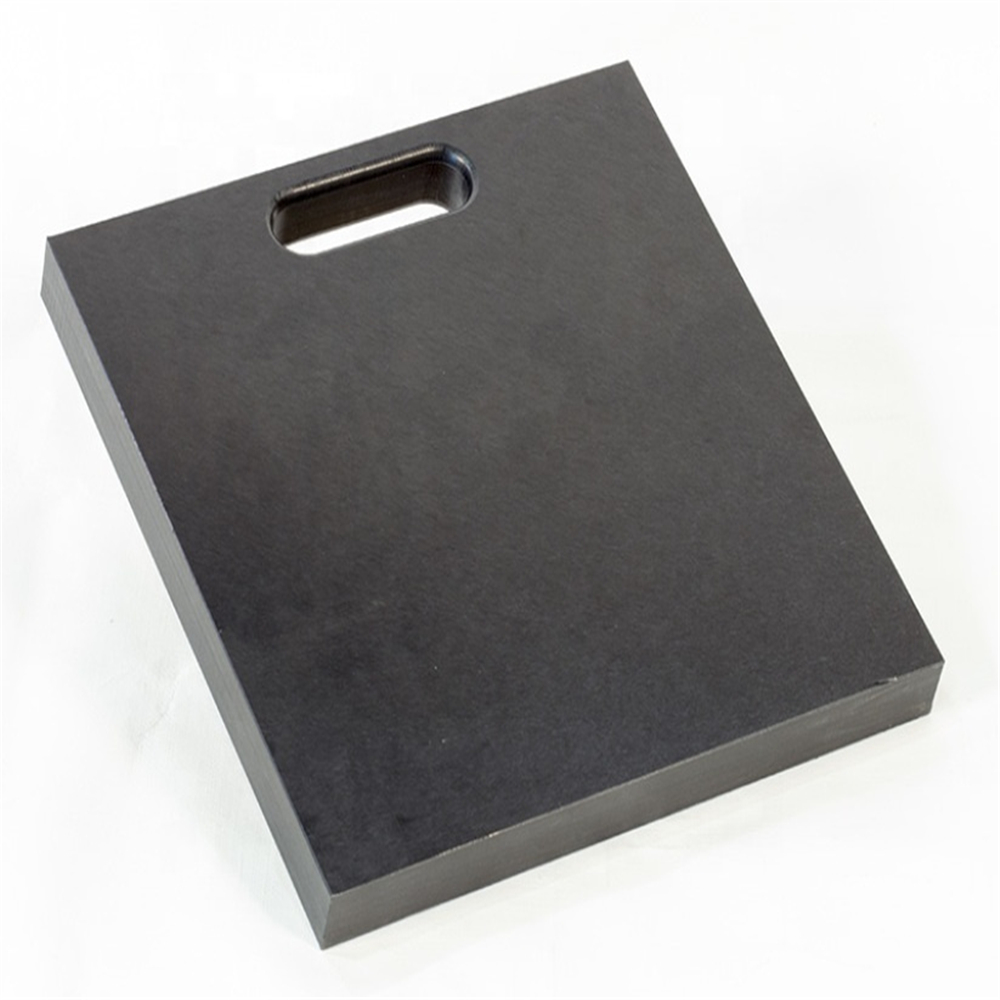

The HDPE/UHMWPE customized size crane outrigger pads is mainly used as the backing plate under the outrigger of engineering machinery, plays a supporting role. The pad possesses high strength and stiffness, and then it can reduce deformation quantity of the body under the stress. It can provide more stable support force for cranes, concrete pump truck and other heavy engineering machinery vehicle.
The HDPE/UHMWPE customized size crane outrigger pads is composed of two parts, pad self and a carry rope. The pad is made of UHMW-PE composite material at high temperature and high pressure special process. The portable rope is made of nylon material. The end of portable rope plate embedded in the plate body in order to facilitate the carrying and arrangement.
|
Specification |
|||
|
Square Outrigger Pad |
Round Outrigger Pad |
|
|
|
Common size |
Loading capacity for crane feed |
Common size |
Loading capacity for crane feed |
|
300*300*40mm |
3-5 tons |
300*40mm |
2-6 tons |
|
400*400*40mm |
4-6 tons |
400*40mm |
3-7 tons |
|
400*400*50mm |
6-10 tons |
500*40mm |
4-8 tons |
|
500*500*40mm |
10-12 tons |
500*50mm |
8-12 tons |
|
500*500*50mm |
12-15 tons |
600*40mm |
10-14 tons |
|
500*500*60mm |
13-17 tons |
600*50mm |
12-15 tons |
|
600*600*40mm |
15-18 tons |
600*60mm |
15-20 tons |
|
600*600*50mm |
16-20 tons |
700*50mm |
22-30 tons |
|
600*600*60mm |
18-25 tons |
700*60mm |
25-32 tons |
|
700*700*60mm |
25-35 tons |
700*70mm |
30-35 tons |
|
800*800*70mm |
30-45 tons |
800*70mm |
40-50 tons |
|
1000*1000*80mm |
50-70 tons |
1000*80mm |
45-60 tons |
|
1200*1200*100mm |
60-100 tons |
1200*100mm |
50-90 tons |
|
1500*1500*100mm |
120-180 tons |
1500*100mm |
80-150 tons |
|
Customized size and shape on demand |
|||
Outrigger pads advantages:
1.Outrigger pads don’t absorb moisture and will not swell up over time due to exposure outdoors.
2.Outrigger pads good impact intensity,do not decrease the impact strength over time.
3.Outrigger pads good breaking elongation,so they will bend but not break under extreme loads.
4.Outrigger pads non-stick surface,easy to clean.
5.Outrigger pads corrosion and chemical resistant.
6.Outrigger pads lower maintenance cost.
7.Outrigger pads can work in bad weather conditions.
8.Outrigger pads amazingly light compared to steel pads,and easier to mount and replace.
9.Outrigger pads will not rot,crack,splinter,much safer to use in the field compared to other wood based pads.
10.Outrigger pads durable lasting,low cost and efficient working compared to steel or aluminum.
11.Outrigger pads storage friendly.

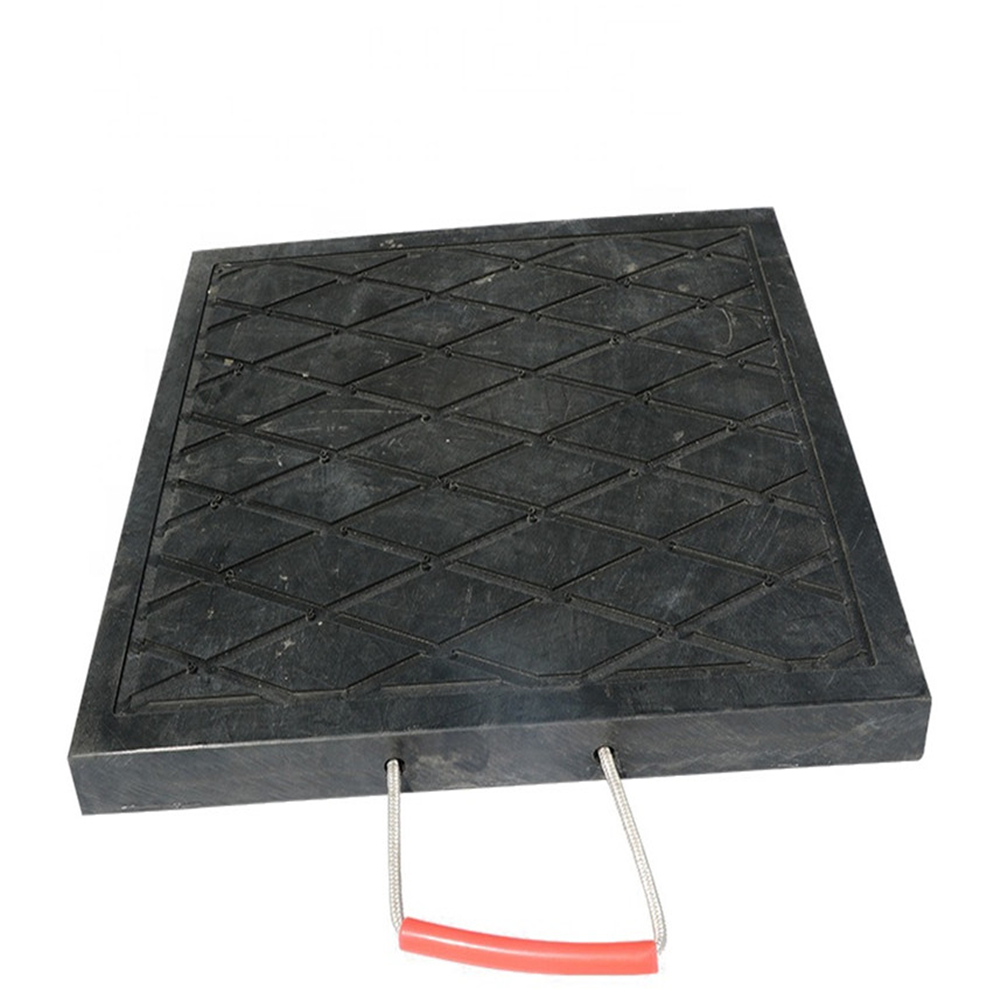

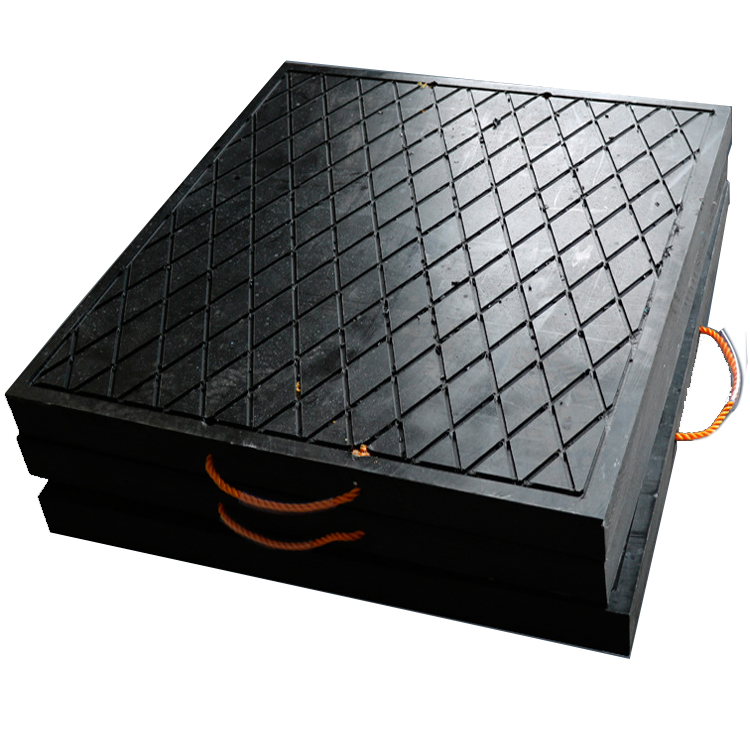

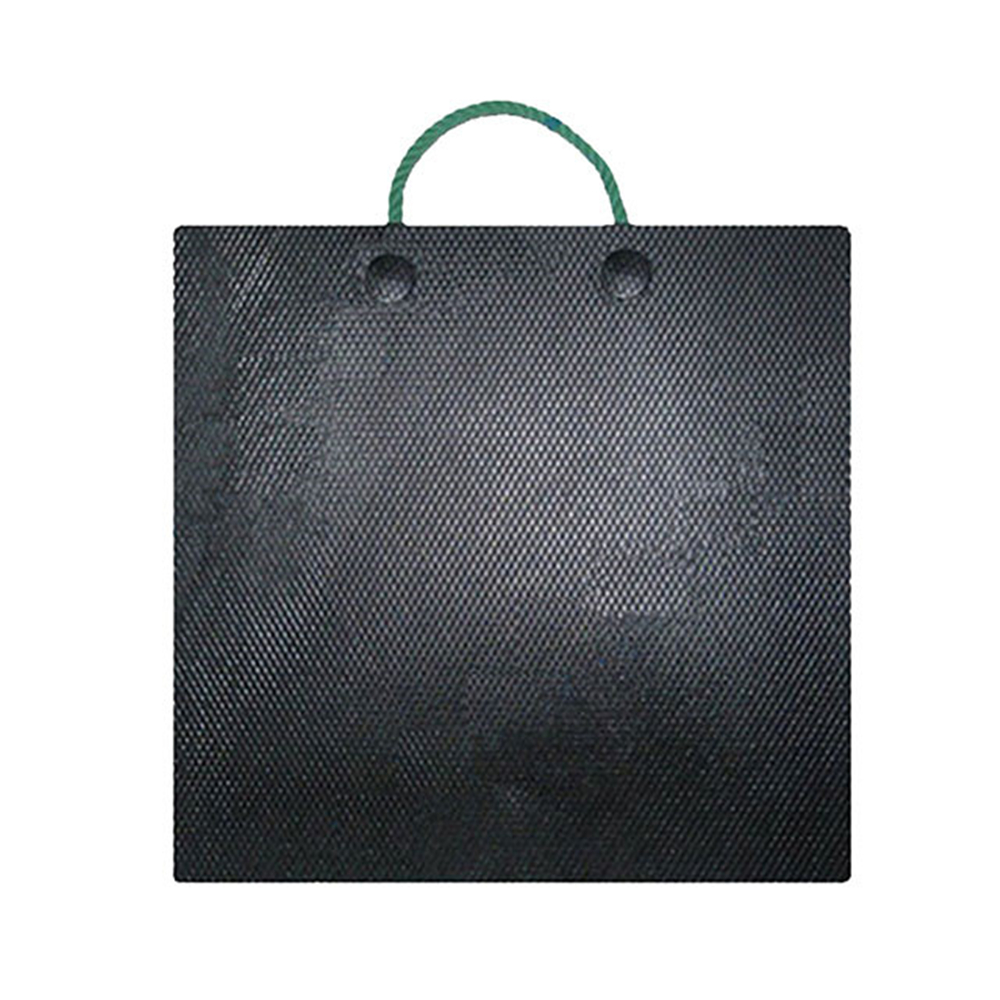

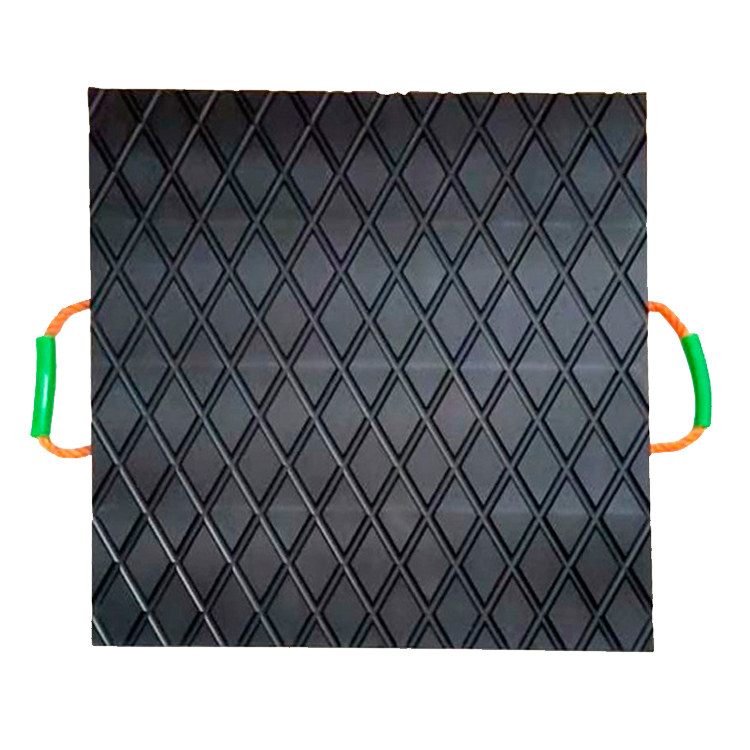

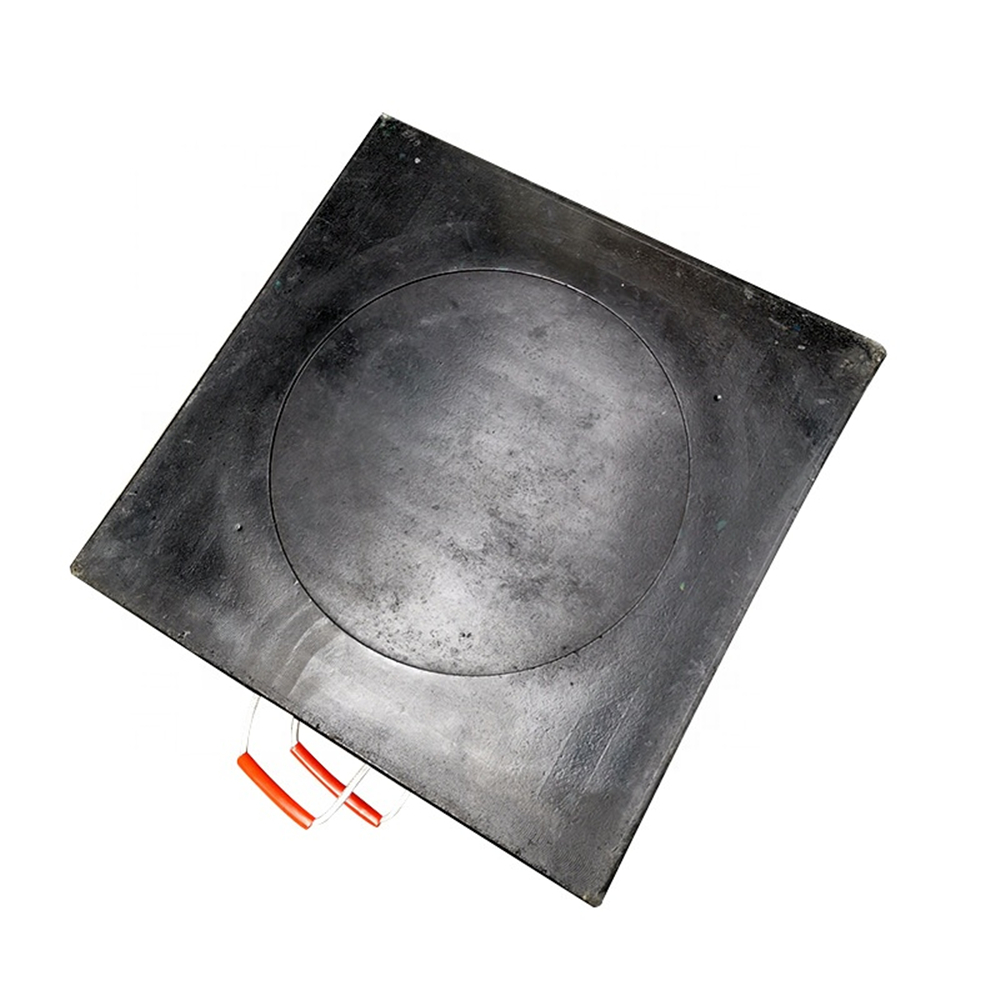

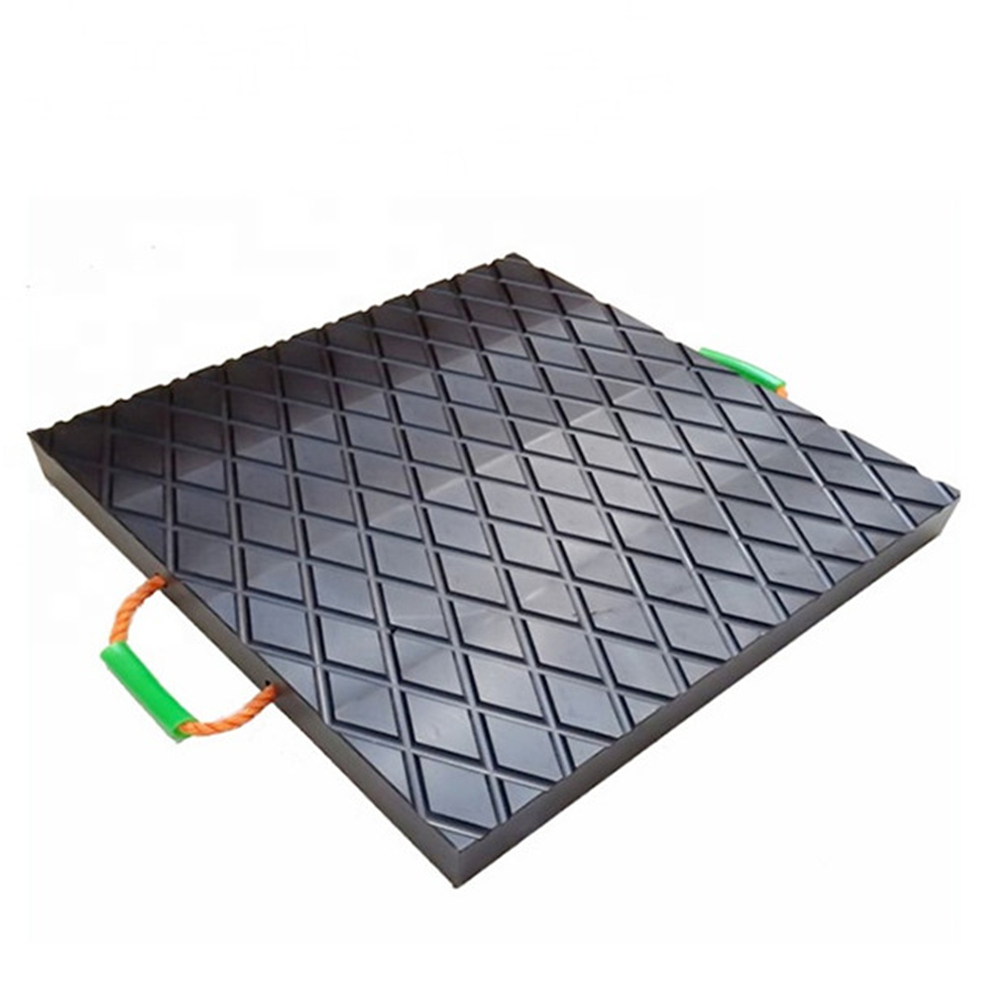

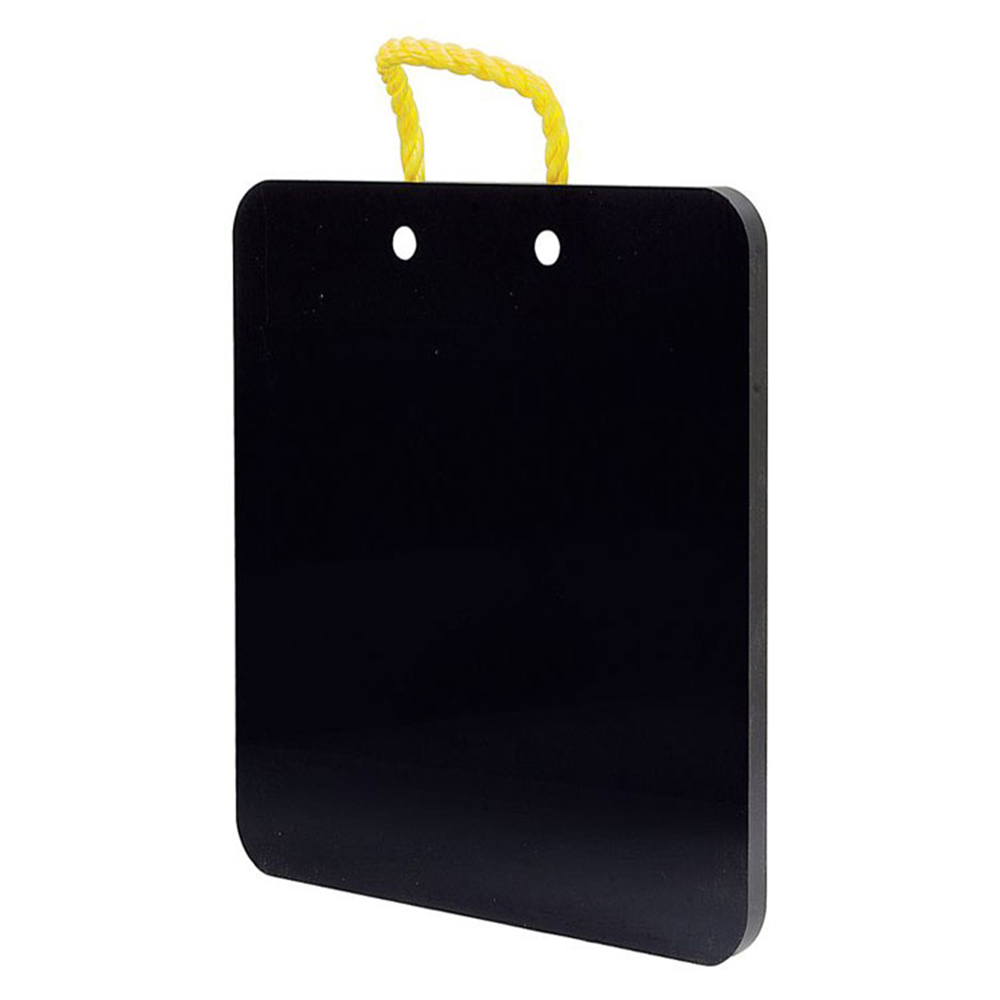

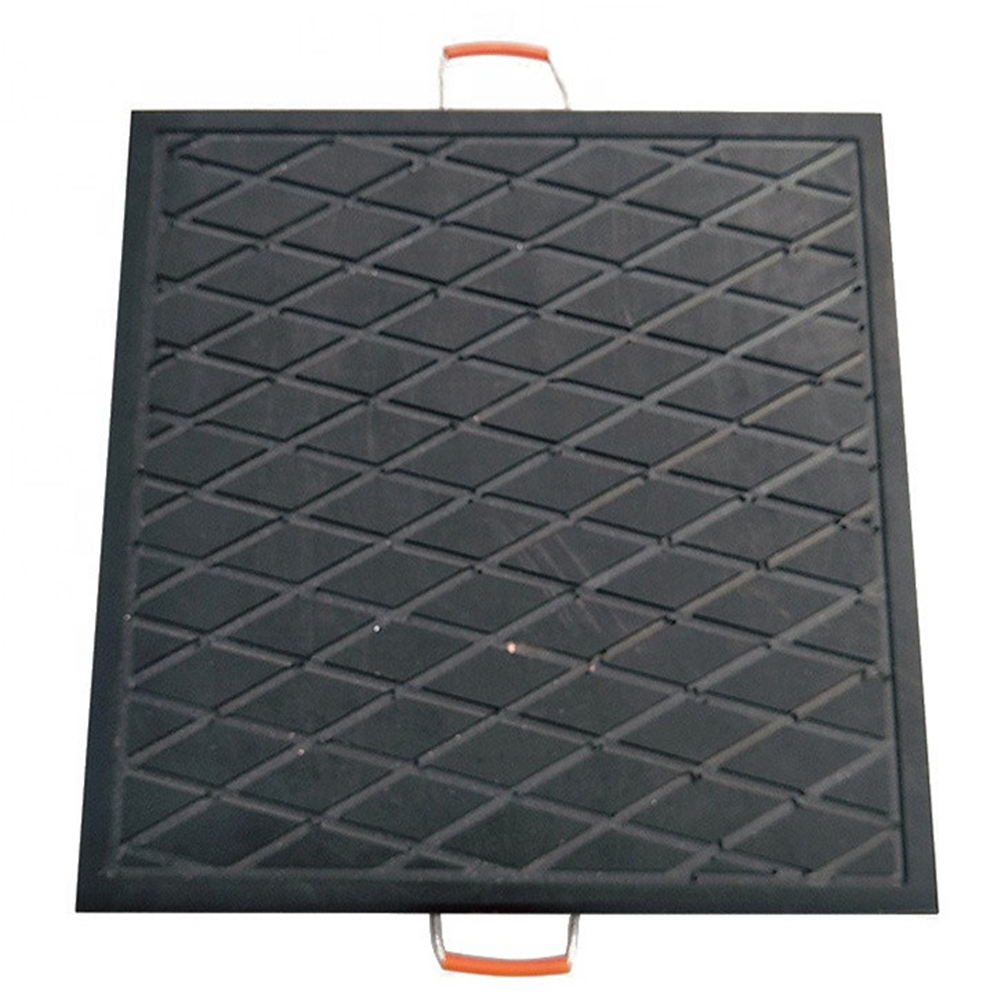

Product detail pictures:
